Performance & Technical Specification
| Model |
Ultra 2000-3304 4C |
Ultra 2000-3308 4C |
| Ultra 2000-3306 6C |
Ultra 2000-3312 6C |
| Resolution |
1440 dpi Visual Resolution |
| Printhead |
U.K.XAAR Print Head Proton 4/6 pcs |
U.K.XAAR Print Head Proton 8/12pcs |
| Printing Width |
3.2m |
| Speed |
3pass 40m2 /h |
1pass 102m2 /h |
| 4pass 35m2 /h |
2pass 65m2 /h |
| 6pass 23m2/h |
3pass 42m2/h |
| Color |
16.7million.CMYK Lc Lm |
| Media |
Media Width |
3.3m Max |
| Media Handling |
Roll to Roll handling |
| Media Types |
Vinyl,PP Paper,Advertising banner, PVC, Mesh with liner |
| Ink |
Pigment solvent based 1 year outdoor life |
| Image Data Format |
TIFF,JPG,EPS,PDF |
| RIP |
SCANVEC Photoprint DX Wit-Color version |
| Control Station |
Windows 2000/XP Workstation |
| Packing Size |
Separate Bodies Design: L/W/H: 4.48x0.87x1.42m |
| G.W/N.W |
630kg/470kg |
·High Productivity
·Long Using Life
·High Yield
·XAAR 382 Proton print heads' printer
·Drop volume 17-35 PL, real 1440 DPI
·Fire frequency 15-30k
·Equipped with Constant Temperature Ink Filtration & Supplying System
·Multiple ink filtrations for ink supplying system improved the stability of ink supplying and extended the print head’s using life
·Perfect Color Presentation
·Imported Brushless Servo Motor with DSP pure digital controlling technology
·Original THK/HIWIN non-noise linear rail
·Original MEGADYNE/ELATECH timing belt made in Italy
·Triple Ink Filtrations System with Constant Temperature System
·Multiple ink filtration system with American PALL Filters+Stainless Steel Ink Filters
.jpg)

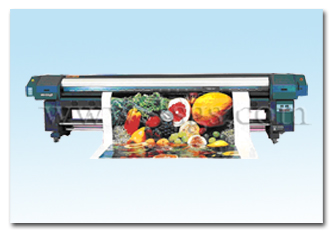

Ultra2000 Flatbed
Performance & Technical Specification
| Model |
Ultra 2000 Flatbed 3304 4C |
Ultra 2000 Flatbed 3308 4C |
| Ultra 2000 Flatbed 3306 6C |
| Resolution |
1440 dpi Visual Resolution |
| Printhead |
U.K.XAAR Print Head Proton 4/6 pcs |
U.K.XAAR Print Head Proton 8pcs |
| Printing Width |
3.2m |
| Speed |
3pass 45m2 /h |
1pass 102m2 /h |
| 4pass 35m2 /h |
2pass 65m2 /h |
| 6pass 23m2/h |
3pass 42m2/h |
| Color |
16.7million.CMYK Lc Lm |
| Media |
Media Width |
3.3m Max |
| Media Handling |
Roll to Roll & Flatbed Materials |
| Media Types |
Advertising banner,Flex,PVC,Vinyl,PP Paper,Mesh with liner, KT Board, Foam Board, PS Board, Film, Mesh with liner |
| Ink |
Pigment solvent based 1 year outdoor life |
| Image Data Format |
TIFF,JPG,EPS,PDF |
| RIP |
SCANVEC Photoprint DX Wit-Color version |
| Control Station |
Windows 2000/XP Workstation |
| Packing Size |
Separate Bodies Design: L/W/H: 4.48x0.87x1.42 m |
| G.W/N.W |
630kg/470kg |
·High Productivity
·Long Using Life
·High Yield
·XAAR 382 Proton print heads' printer
·Negative Pressure Ink Supply System
·Drop volume 17-35 PL, Fire frequency 15-30k
·Equipped with Constant Temperature Ink Filtration & Supplying System
·Multiple ink filtrations for ink supplying system improved the stability of ink supplying and extended the print head’s using life
·Perfect Color Presentation
·Imported Brushless Servo Motor with DSP pure digital controlling technology
·Original THK/HIWIN non-noise linear rail
·Original MEGADYNE/ELATECH timing belt made in Italy
·Triple Ink Filtrations System with Constant Temperature System
·Multiple ink filtration system with American PALL Filters+Stainless Steel Ink Filters
.jpg)

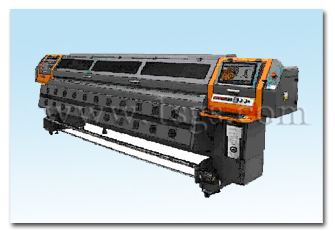

Ultra1000
Performance & Technical Specification
| Model |
Ultra1000-Skywalker-3312 E |
| Resolution |
360x150/360x300/720x150/720x300 dpi |
| Printhead |
Spectra Skywalker 128 12pcs |
| Printing Width |
3.2m |
| Speed |
2pass 120m2 /h |
| 3pass 80m2 /h |
| 4pass 60m2/h |
| 6pass 40m2/h |
| Color |
16.7million.CMYK |
| Media |
Media Width |
3.3m Max |
| Media Handling |
Roll to Roll handling |
| Media Types |
Flex,Advertising banner,PVC,Canvas,Mesh with liner |
| Ink |
Pigment solvent based 1 year outdoor life |
| Image Dataformat |
TIFF,JPG,EPS,PDF |
| RIP |
SCANVEC Photoprint DX Wit-Color version |
| Control Station |
Windows 2000/XP Workstation |
| Packing Size |
L/W/H:5.18MX0.98MX1.65M |
| G.W/N.W |
1070kg/820kg |
·Adopted world famous American SPECTRA SKYWALKER-50 PL Printhead with all stainless steel nozzle plate,using life 7-10 years;
·Imported negative pressure system and supreme print head performance ensured the constant printing for 3 hours without jamming on conditions of no cleaning during printin
·Fire frequency is 16K HZ, high productivity of 120㎡/H by 2 Pass with vivid color presentation.
·Imported AC Servo Motors and Reducers equipped X and Y axis movement systems
·THK linear rail made in Japan, Megadyne timing belt made in Italy, Auto media width sensor.
·Quartic ink filtrations for each color ink through American PALL filters.
·Digital Ink Constant Temperature System reduced the cost that caused by environment temperature changing.
·High precision mechanism processing exceeded the Industry Standard.
·All of these guaranteed our leading position in this industry.
.jpg)

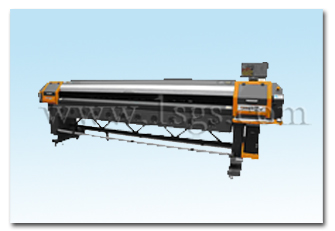

Ultra860+
Performance & Technical Specification
| Model |
Ultra 860+ 3312 |
Ultra 860+ 3316 |
| Resolution |
360/720dpi Max |
| Printhead |
U.K.XAAR 128-360dpi 12pcs |
U.K.XAAR 128-360dpi 16pcs |
| Printing Width |
3.2m |
| Speed |
3pass 39m2 /h |
3pass 50m2 /h |
| 4pass 29m2 /h |
4pass 39m2 /h |
| 6pass 21m2/h |
6pass 27m2/h |
| Color |
16.7million.CMYK Lc Lm |
| Media |
Media Width |
3.3m Max |
| Media Handling |
Roll to Roll handling |
| Media Types |
Flex,Advertising banner,PVC,Canvas,Vinyl,PP Paper,Mesh with liner |
| Ink |
Pigment solvent based 1 year outdoor life |
| Image Data Format |
TIFF,JPG,EPS,PDF |
| RIP |
SCANVEC Photoprint DX Wit-Color version |
| Control Station |
Windows 2000/XP Workstation |
| Packing Size |
Separate Bodies Design: 4.48x0.87x0.92m |
| One Body Design: 4.48x0.87x1.42m |
| G.W/N.W |
630kg/470kg |
·One Body Design series Main Configuration:Ultra860+ 3312/3316
·THK/HIWIM linear rail;
·Delta motor from Japan;
·Photoprint software from U.S.A.
·Two Bodies Design series Main Configuration:Ultra860+ 3312/3316
·THK/Hiwin linear rail;
·2.8N 3Phase stepper motor
·Maintop software.
|
