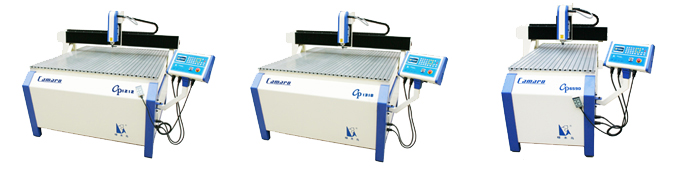

CAMARO Series engraving machine（High-precision·Color·Cost-effective ）
“Woodpecker” CAMARO Series engraving machine is a new model for the sign making industry launched in 2009. It has a new look, fast speed and high precision. It comes with a newly developed Woodpecker DSC CNC controller, high definition color LCD display, and a user friendly interface. It can work offline. It uses a high speed USB 2.0 connector and can transfer at speeds up to 12MB/min. There is an Ethernet connector and a large internal memory, making it easy to download data. The new digital analog converter makes it much easier to change the speed of the spindle via the controller. The controller uses DSC technology, enhancing data processing speed. With a step driver, it can reach speeds up to 7.2 meters per minute. When the job mixes straight lines and arcs, it will make the output very smooth. The new controller has the same previous functions such as cutting at an angle for smoother cuts, power failure memory of the last point, restarting the job at any line, etc… New functions includes Professional modes like “Constant speed cutting”, “2D mode”, “3D mode”, “Custom made mode” (the user can set his own defined parameters for each kind of job and save it), which is easier to reuse for the future. The new controller has many kinds of high level functions, like “Duplicate Mode”, “Mirror Image Mode”, “Scanning Mode”, “Drilling Mode” *, etc... With the new DSC controller, updates can be made via files that can be downloaded from ROC-MESE website (only for registered end users). Customers can now have the latest software version of the controller without replacing the board.

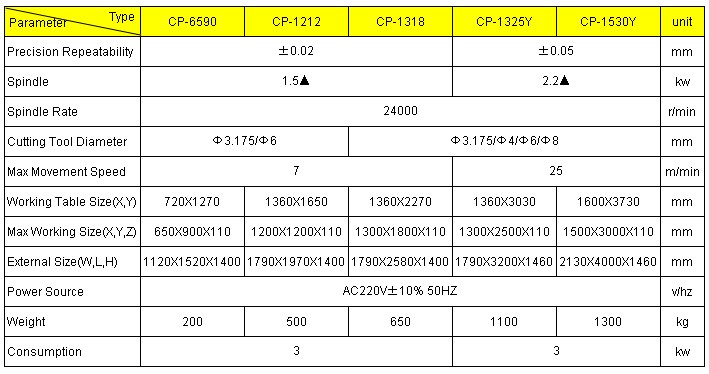

Specification:
**Parameters are subject to change.use the company technical standards as the basis.
**Wireless controller is optional.
**For CP1212 \ CP1318 ▲2.2kw optional.
**Results are different using a step motor versus a servo motor.
**Depending on the spindle power,results may differ..
|
