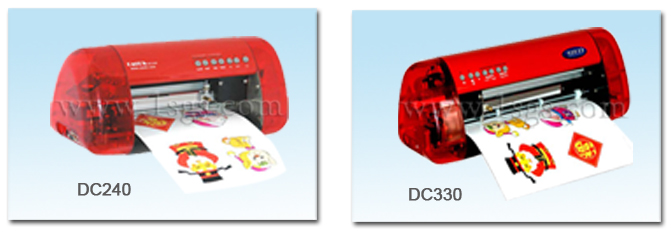

GraphiCut-Mini series Plotter



Features:

  • These are small cutting and drawing plotters with a registration mark Laser on it.
  • It is a 9"/13" mini vinyl cutter plotter sign making equipment
  • You can draw, cut, kiss-cut and decupe shapes around. You can cut cartoon or other Vinyl and polyester sheets for your business and hobbies.
  • It is powered by a 16V DC adaptor.
  • Compatible with Windows VISTA, XP, 2003, 2000.
  • A Windows driver is provided and enables output from leading drawing software (eg CorelDRAW 12, Adobe IllustratorCS).
Specification:

  Item   DC240   DC330
Configuration Grit-rolling
Drive system Stepping moter
Maximum cutting range 190mm x 2000 mm 290 mm x 2000 mm
Effective sheet width A4 size supported A3 size supported
8.25 inch 11.75 inch
Cutting force 60gf to 500gf (7 levels selectable)
Cutting speed 10 - 280 mm/s ( 7 levels selectable)
No. of pens mountable 1
Media types Film media 0.1 mm or less in thickness
Kent paper (inkjet or laser paper up to 300g/m2)
Drawing paper,Postcards, Scrapbooking paper; Inkjet photo paper
(Not all types of media can be cut)
Interface USB or RS232
Power supply Dedicated adapter, OUTPUT:DC 16V 2.5A
INPUT:AC100V~240V ; 47Hz~66Hz
Working environment 5 to 30 °C, 35 to 80% R.H. (Non-condensing)
External dimensions (W x D x H) Approx380 x 170 x 165 mm Approx470 x 170 x 165 mm
Carton dimensions Approx470 x 360 x 270mm Approx590 x 360 x 270mm
Weight Approx. 4.5kg Approx. 5.5 kg
Gross weight Approx. 5.4kg Approx. 6.7kg
