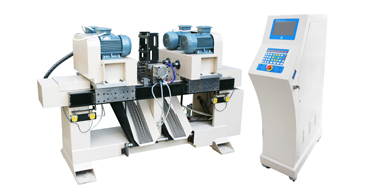

Four-axis precision CNC drilling machine
HD-418 is a four axis, lock cylinder casing drill press machine. It uses a semiautomatic feeding mechanism, which is composed of a clamping system and a pneumatic system. The feeding mechanism allows you to adjust the length based upon the size of the lock case.
The machine uses an imported German ball screw, imported linear guide rail and a high precision spindle. Drilling on this machine is very precise and fast.
The controller uses a 32 bit RISC chipset, the processing speed is very quick, raising productivity. A large LCD screen shows all the information and parameters of the current job and makes it easy to read and to manage. To load a file onto the machine, you can use an USB flash drive. It comes with a larger internal flash memory and allows you to work without a PC.
This product has been made in the State Intellectual Property Patent Certification
Patent number: 200710038380.8

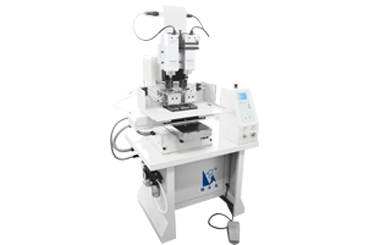

VMK-0088
VMK-0088 is suitable for drilling on a flat key and drilling on a lock cylinder. This machine is perfect for a production line, integrating human labor with machine automation. The controller uses a 32 bit RISC chipset, the processing speed is very quick, raising productivity. The machine’s internal drilling program can be changed quickly. You can adjust the speed of the drilling, the depth of the cut and the distance between the holes. It comes with an automatic pneumatic clamp, controllable by a foot pedal. For 8 hours of work, with 6 holes per key, you can make over 5000 keys. It has two high precision spindles with maximum RPM of 24,000, which can work simultaneously. It can make your product more precise and smooth. The noise level of the spindles is also much lower than ordinary motorized spindles. By replacing the software and clamps, you can perform many different types of jobs on this machine.
This product has been made in the State Intellectual Property Patent Certification
Patent number: 200710038380.8

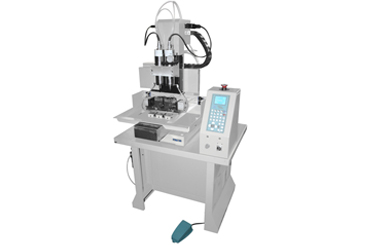

VMK-0808
VMK-0808 is suitable for many different kinds of keys, flat keys with holes, car keys, two-sided tooth keys, and many other kinds of specialized keys. Not only does it make keys, but you can also make the lock core and small lock case. This machine uses modern day technology and computer-aided design, allowing the key manufacturer increased production efficiency. The system uses a 32 bit RISC chip, allowing for quicker processing and higher productivity. It comes with a pneumatic key holder, making it easier to operate. The machine can make a 6 holed key at a rate of 5,000 over 8 hours. A large LCD screen displays the production information and other parameters all in 1 easy to read screen. You can store and manage a large amount of files. It has 2 spindles, which can operate up to 24,000 revolutions per minute. The speed can be adjusted in a stepless manner via the inverter which results in smoother operation, more precise outputs and much quieter operating environment. By changing the program and work material, you can make different types of keys, engrave serial numbers on the keys and perform many other functions.
This product has been made in the State Intellectual Property Patent Certification
Patent number: 200710038380.8

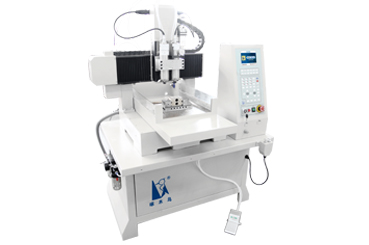

VMK-3230
VMK-3230 is a dual spindle, 2 Z-axis, 4 axis CNC key making machine. The 2 spindles can work simultaneously together at the same time or work separately. When the 2 spindles are working at the same time, you can make single line holes and double line holes keys, different edge type keys, and different automobile keys. When the spindles work separately, each spindle can have its own blade and can make male/female keys. If you use different clamps, like rotating clamps, you can create special types of keys. VMK-3230 is a high performance to price machine.
This product has been made in the State Intellectual Property Patent Certification
Patent number: 200710038380.8

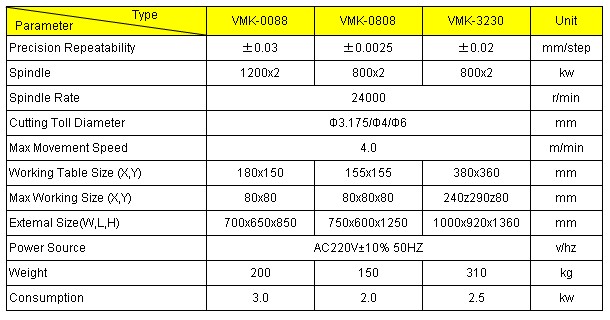

Specification:
**Parameters are subject to change.use the company technical standards as the basis.

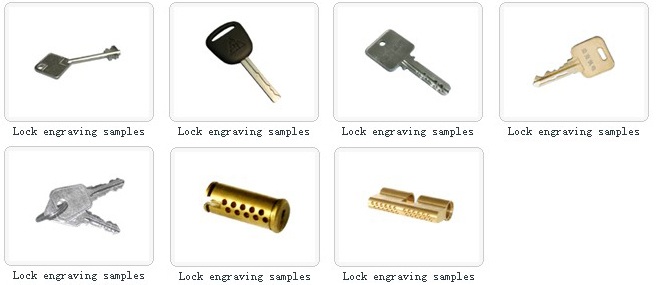

Sample show
|
.jpg)
