MEII-4242SQ was introduced in 2006 by ROC-Mese (Shanghai) Co. Ltd. The machine uses a double column stand, cast iron built, and linear guide system. It comes with a German ball screw, high speed double CPU-CNC control system. The output pulse frequency achieves 6.5 MHZ, and can move as quick as 15m/min. It can automatically remember knife coordinates as well as go back to the work material’s original starting point. You can control different options such as placing priority on speed or quality. The 1.5Kw high frequency spindle is good for satisfying the most common mould carvings. The hand controller is very easy to operate and allows for faster operations. Suitable for mould injections, heat transfer moulds, press moulds, and other copper and EDM moulds.
MEⅡ-4242
MEII-4242 is a new styled machine that was released in 2005 by ROC-Mese (Shanghai) Co. Ltd. The machine now uses a double column stand, cast iron built, and linear guide system. It comes with a German ball screw, high speed double CPU-CNC control system, microstep driver and a 1.5Kw spindle. This can very easily satisfy most mould cutting requirements. The hand controller is very easy to operate and allows for faster operations. Suitable for mould injections, heat transfer moulds, press moulds, and other copper and EDM moulds.
MEII-5040
Introduced in 2007, the newest design uses a double column platform and can easily load and unload working material. It uses a German ball screw, imported linear guide, imported servo driver and can satisfy the mould industry’s need for precision and durability. The 4.5kw high frequency spindle gives the machine an extremely powerful cutting ability. It is suitable for mould injections, heat transfer moulds, press moulds and other copper and EDM moulds. This machine was well received in the market and has surpassed our expectations.
MEⅡ-5060S
MEII-5060S is a milling-engraving machine suitable for large scale moulds. It has a double column support structure, uses an imported ball screw, imported linear guide and imported servo driver. It utilizes a pneumatic Z axis, for extreme stability. The machine has an option for a 4.5 kw Italian spindle for the most demanding applications. The hand controller is fast and easy to use. A large screen, 15 inch LCD display is included. It is suitable for larger injection moulds, heat transfer moulds, press moulds and other bronze and EDM moulds. The machine also has an option for a fourth axis.
MEⅡ-4540
Introduced in 2003, with a completely new design. The lead screw is imported from Germany. The spindle is a 2.2 KW imported from Italy. This is a powerful, efficient machine capable of making smooth curvature cuts on harder materials and is highly adaptable to many uses.
SE-1010
The SE-1010’s beautiful construction, compactness, rigid strength and high precision is suited for small molds and specialized work pieces (for example: Buttons, small steel die, chops and so on). It uses the new ARM high speed RISC processor control system, USB memory stick and USB interface for communications. You can use high capacity flash memory and operate the machine completely offline. For mould professionals, this machine has a very high performance/price ratio.

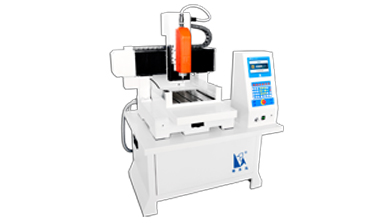

SE-3230
SE-3230 is a new CNC engraving machine developed for small moulds and metal engraving. The machine has a double column design, imported linear guide and ball screw. It is small, fast, sturdy and accurate. It has our company’s latest developed DSC controller with a 7 inch color LCD screen. It comes with USB 2.0 connector and a large internal memory. The controller has many kinds of processing mode, like “Power failure memory”, “Custom made mode” etc… The machine can have multi-spindle for large-scale production.

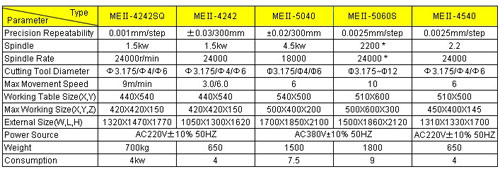

Specifications::
**For MEII-5060S, 4.5Kw optional,18000r/min,Source power AC380V±10% 50HZ
**Parameters are subject to change.use the company technical standards as the basis.

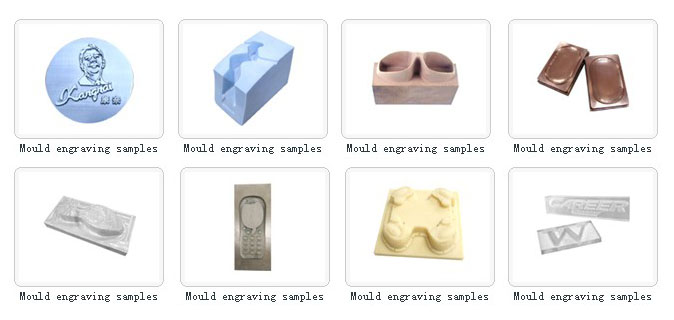

Sample Show
|
.jpg)
.jpg)
.jpg)
.jpg)
